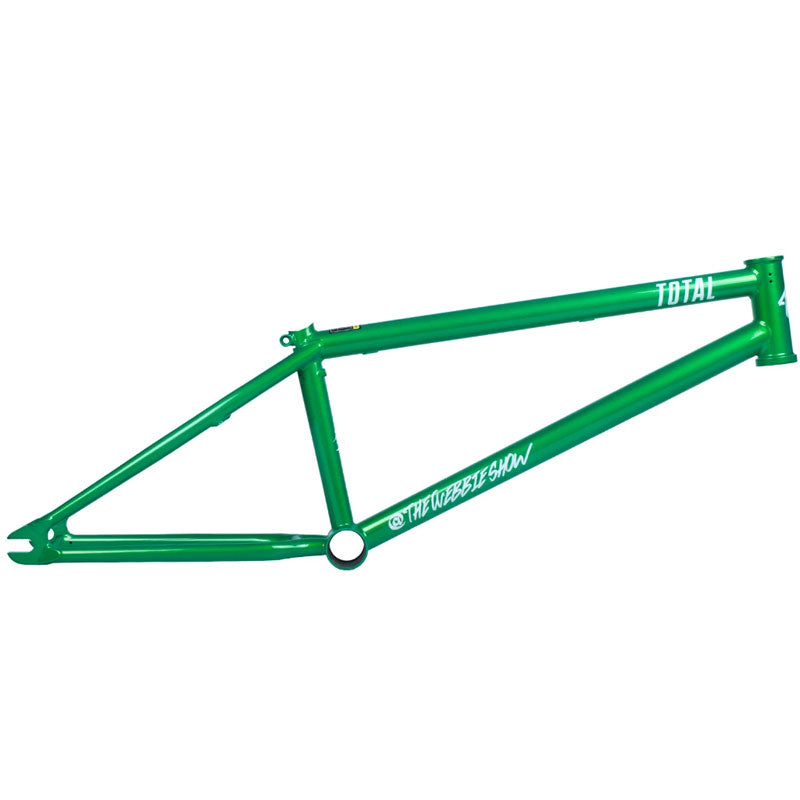

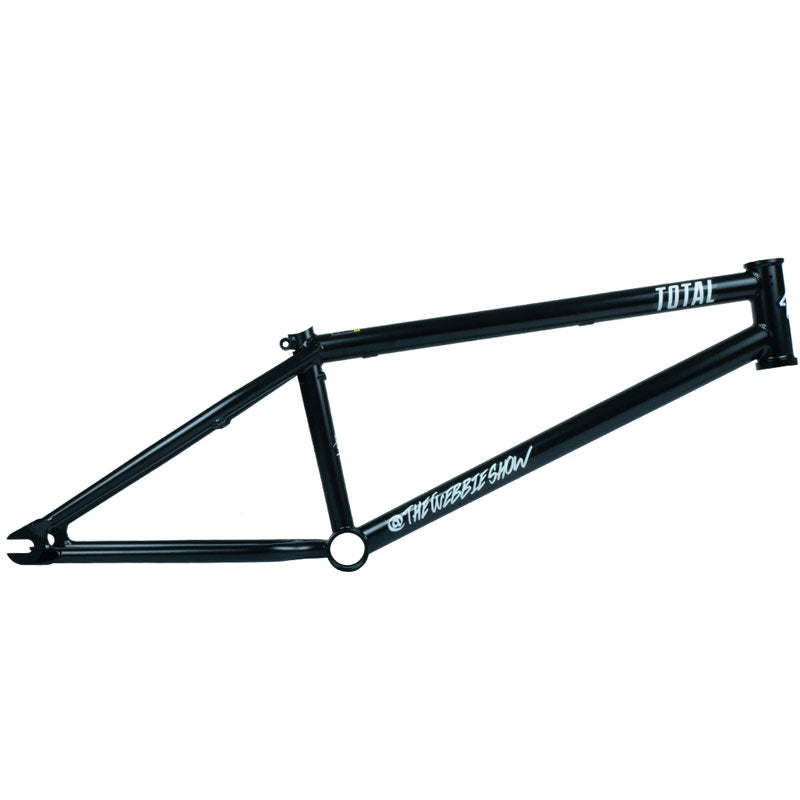

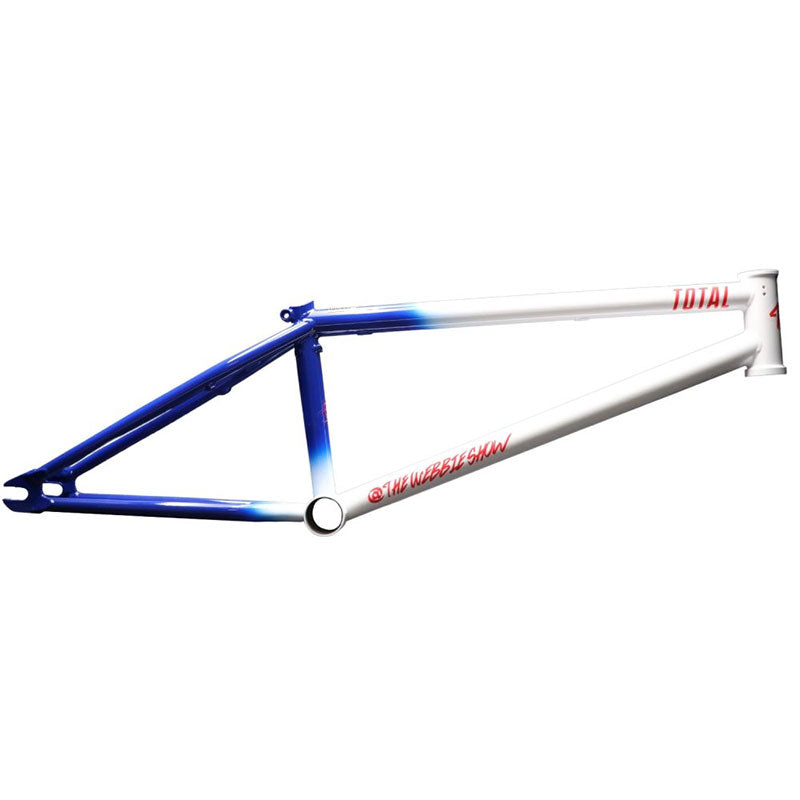

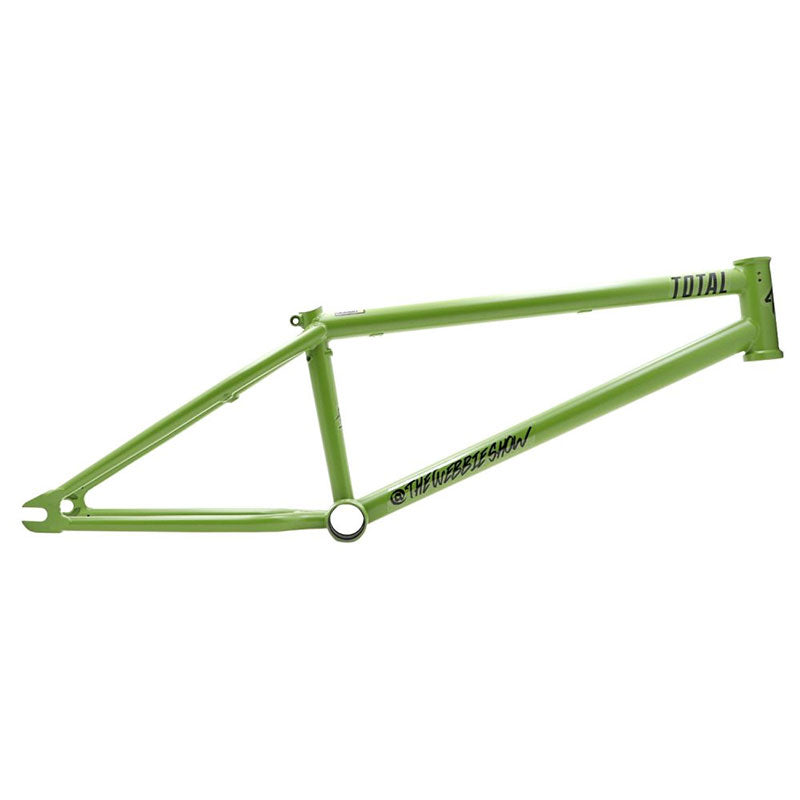

Total TWS 2 Frame

Total TWS 2 Frame

Shipping calculated at checkout.
Color
Size
Option

SKU

SKU:20002032

Barcode (EAN) per variant
METALGREEN / 20.3''TT / BRAKEMOUNT: 603004801743
METALGREEN / 20.6''TT / BRAKEMOUNT: 603004801774
BLACK / 21.25''TT / BRAKEMOUNT: 603004801811
GREEN / 21''TT / BRAKEMOUNT: 0700512946994
BLUE/WHITE / 21''TT / BRAKEMOUNT: 0700512946987
BLUE / 21.25''TT / BRAKEMOUNT: 603004801828
BLACK / 20.6''TT / BRAKEMOUNT: 603004801750
Weight per variant
METALGREEN / 20.3''TT / BRAKEMOUNT: 2.18 kg
METALGREEN / 20.6''TT / BRAKEMOUNT: 2.18 kg
BLACK / 21.25''TT / BRAKEMOUNT: 2.18 kg
GREEN / 21''TT / BRAKEMOUNT: 2.18 kg
BLUE/WHITE / 21''TT / BRAKEMOUNT: 2.18 kg
BLUE / 21.25''TT / BRAKEMOUNT: 2.18 kg
BLACK / 20.6''TT / BRAKEMOUNT: 2.18 kg
Mark Webb Signature

material : full multi-butted sanko 4130 chromoly
top tube length : choose available TT length in the size menu above
head tube angle : 75,5 degrees
head tube length : 120mm
seat tube angle : 71 degrees
chain stay length : 13,2 - 13,4 inch
bottom bracket height : 11,5 inch
stand over height : 8,75 inch

head tube : compatible with integrated headsets (45/45)
bottom bracket : mid
seat tube : fits 1 inch seatposts | integrated seat clamp
dropouts : 14 mm slots | 6 mm thick | heat-treated
down tube gusset : internal
top tube gusset : internal

tire clearance : fits large tires
brake mounts : removable on seatstay (not included)
gyro tab holes : yes

additional information :
integrated chain adjusters
exclusive DBS brake routing system
